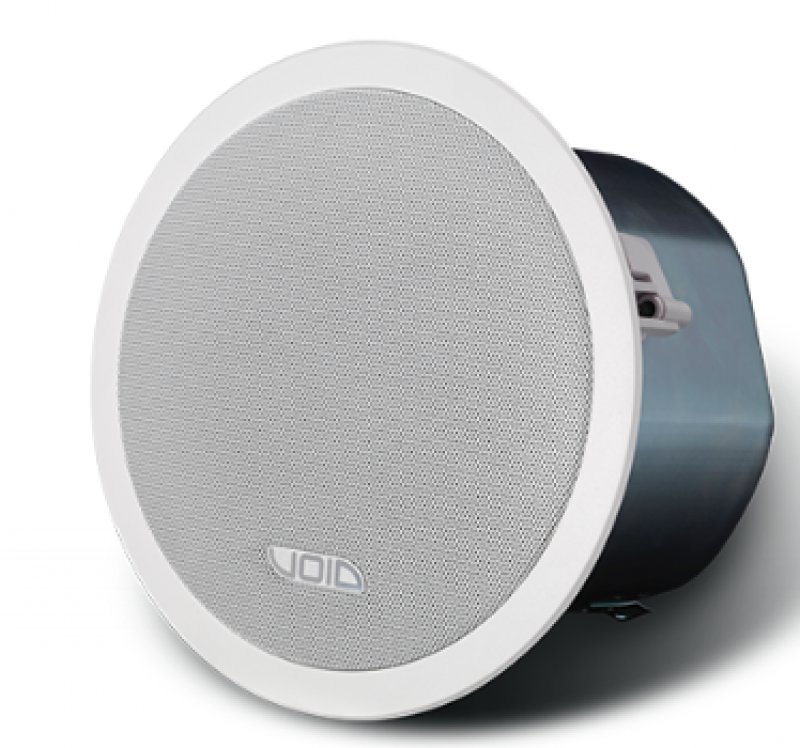

Cirrus6.1

•

功能說明

• Frequency Response: 96Hz ~ 18KHz (-3dB) / 62Hz ~ 20KHz (-10dB)
• Efficiency1: 90 dB 1W/1m
• Crossover Points: 3.3 kHz passive
• Nominal Impedance: 8 Ω
• Power Handling2: 100 W AES
• Voltage Taps: 100 V - 30 W, 15 W, 7.5 W, 70 V - 30 W, 15 W, 7.5 W and 3.8 W
• Maximum Output3: 110 dB cont, 116 dB peak
• Driver Configuration: 1 x 6.5” LF, 1 x 0.75” HF
• Dispersion: 110°
• Connectors: Removable locking connector with screw-down terminals. Two input terminals and two loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
• Weight: 3.5 kg (7.7 lbs)
• Enclosure: ABS baffle
• Mounting: Backing plate and tiles rails (included)
• Colour: White
• Construction Note: Mounting hole 224 mm (8.8”) diameter

1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
