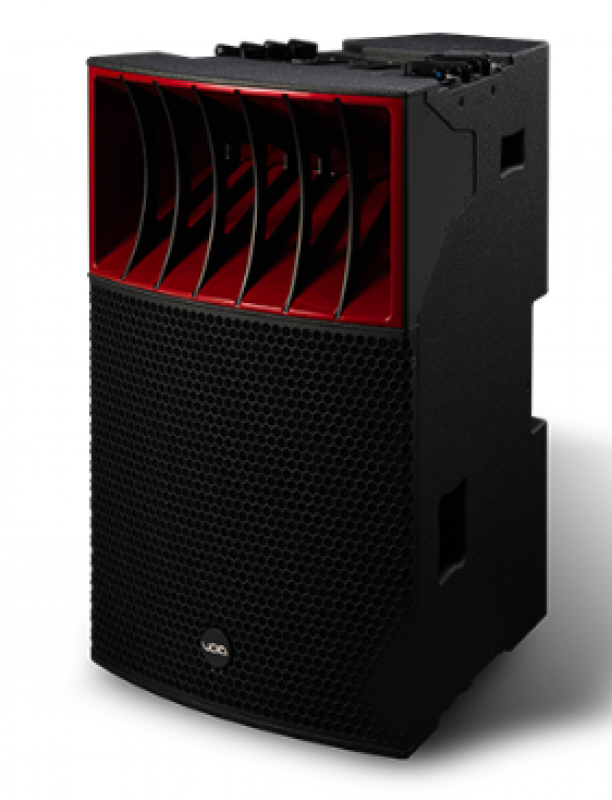

Arclite
功能說明
- Frequency response: 45 Hz - 18 kHz ±3 dB
- Efficiency1: MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m
- Nominal impedance: LF: 8 Ω, MHF: 16 Ω
- Power handling2: LF: 1000 W, MHF 190 W
- Maximum output3: 133 dB Cont, 139 Peak
- Driver configuration: 1 x 15” LF, 1 x 4” MF, 1 x 2.5” HF
- Dispersion: 35° H x 60° V (25° up - 35° down)
- Connectors: 2 x 4-pole speakON™ NL4
- Weight: 44 kg (97 lbs)
- Enclosure: 15 mm birch plywood
- Mounting: Ground stack or suspended
- Finish: Textured ‘TourCoat’ polyurea
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
