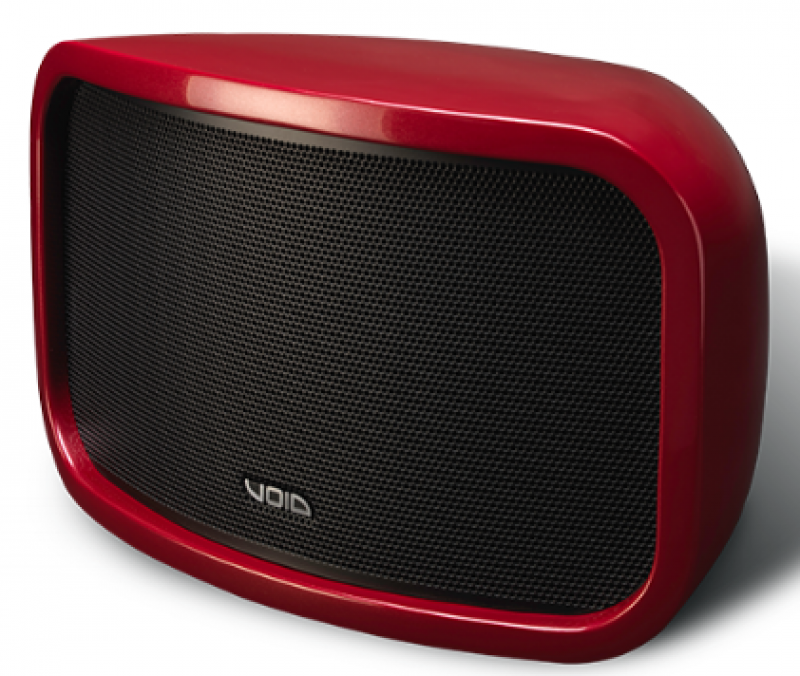

Cyclone8
功能說明
- Frequency Response: 70 Hz - 20 kHz ±3 dB
- Efficiency1: 94 dB 1W/1m
- Crossover Points: 2 kHz passive
- Nominal Impedance: 8 Ω
- Power Handling2: 200 W AES
- Maximum Output3: 118 dB cont, 121 dB peak
- Driver Configuration: 1 x 8”, 1 x 1” coaxial
- Dispersion: 90°H x 90°V
- Connectors: Phoenix
- Weight: 14 kg (31 lbs)
- Enclosure: Fibreglass composite
- IP rating: IP-55 (BS EN 60529:1992 +A2:2013)
- Mounting: Type 80 plate
- Colour: Custom colours available upon request
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
