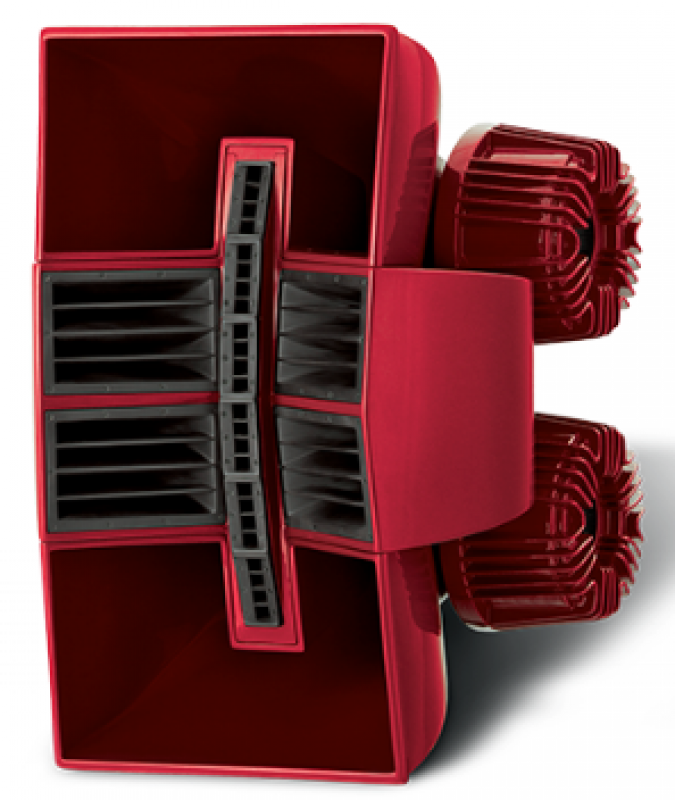

Air Array

•

功能說明

• Frequency Response: 90 Hz - 26 kHz ±3 dB
• Efficiency1: LF: 111 dB 1W/1m, MF: 114 dB 1W/1m, HF: 116 dB 1W/1m
• Nominal Impedance: LF: 2 x 4 Ω, MF: 2 x 4 Ω, HF: 2 x 5.33 Ω
• Power Handling2: LF: 3600 W AES, MF: 800 W AES, HF: 320 W AES
• Maximum Output3: 146 dB cont, 152 dB peak
• Driver Configuration: 4 x 12” LF, 4 x 3” MF compression driver, 6 x 1” HF compression driver
• Dispersion: 90°H x 45°V
• Connectors: 2 x 8-pole speakON™ NL8
• Weight: 170 kg (375 lbs) - With ground stand 195 kg (430 lbs)
• Enclosure: Fibreglass composite
• Mounting: Stack mounted or proprietary suspension system
• Finish: Smooth cellulose

1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
